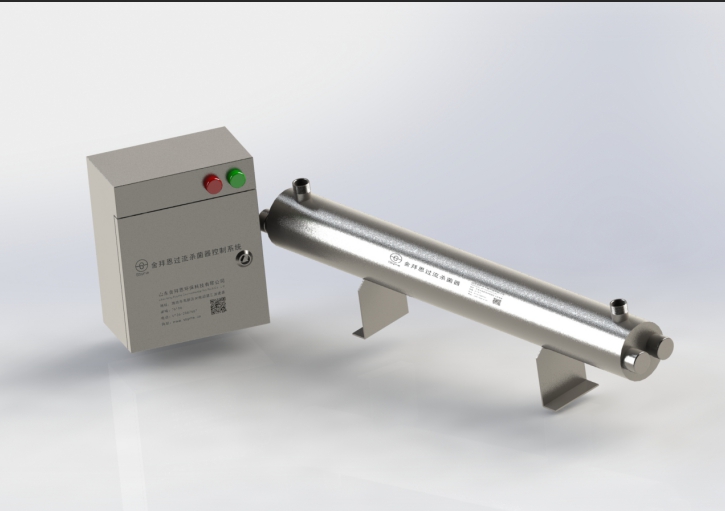

Photocatalytic water sterilizer
Source: Time:2019/9/24 Hits:423

product description:

Ultraviolet rays can be classified into UV-A (320-400 nm), UV-B (275-320 nm), UV-C (200-275 nm), and vacuum ultraviolet portions according to their biological effects. In the water treatment, the UV-C portion of the ultraviolet ray is actually used, and in this band, the ultraviolet ray having the highest sterilizing efficiency has been confirmed in the vicinity of 260 nm.

The photocatalytic over-current sterilizer integrates the comprehensive sciences of optics, microbiology, mechanics, chemistry, electronics and fluid mechanics. High-intensity UV-C light generated by a specially designed high-efficiency, high-intensity and long-life UV UV-C light generating device illuminates the flowing water. When bacteria, viruses, etc. in the water are irradiated with a dose of ultraviolet UV-C light (wavelength 253.7 nm). The DNA and structure of the cells are destroyed, and cell regeneration cannot be carried out, thereby achieving disinfection and purification of water.



Photocatalytic over-current sterilizer features:

1. This equipment is a horizontal structure with fast sterilization, high efficiency and good effect.

2. The device is small in size, light in weight, low in power consumption, long in life and low in cost of use.

3. Can quickly and effectively kill a variety of bacteria, viruses and other microorganisms;

4. By photolysis, it can effectively degrade chloride in water;

5. Simple operation and convenient maintenance;

6. No pollution, strong environmental protection, no toxic side effects;

7. Low investment cost, low operating cost and convenient equipment installation;

8. Using the optical principle to design a unique inner wall treatment process, the cavity can be used to a large extent of ultraviolet light, so that the sterilization effect is doubled.

9. Time control switch to extend UV life.



Ultraviolet combined with photocatalyst disinfection advantages:

1. High-efficiency sterilization: the combination of ultraviolet light and photocatalyst can effectively achieve the sterilization rate of 99%-99.9% in one to two seconds.

2, high-efficiency sterilization broad-spectrum: the broad spectrum of ultraviolet sterilization is the highest, it can kill almost all bacteria and viruses.

3, no secondary pollution: UV sterilization does not add any chemicals, so it will not cause secondary pollution of water bodies and the surrounding environment. Does not change any ingredients in the water.

4, safe and reliable operation: the traditional disinfection technology such as the use of chloride, the disinfectant itself is a highly toxic substance. The UV disinfection system does not have such a safety hazard.

5. The operation and maintenance cost of the equipment is low: the ultraviolet disinfection equipment occupies a small area, and the structure requirements are simple. The cost in operation is also low, the level of kiloton water treatment, the cost is only 1/2 of the chlorine disinfection.



Photocatalyst is a general term for photocatalytic photo-semiconductor materials represented by nano-sized titanium dioxide. It is coated on the surface of the substrate and produces strong catalytic degradation under the action of ultraviolet light: it can effectively degrade toxic and harmful water. Substance; can effectively kill a variety of bacteria, and can decompose and harmlessly release toxins released by bacteria or fungi; also has the functions of removing formaldehyde, deodorizing, anti-fouling, and purifying air.



Product parameters:

 Model: SBN-UV-I/II

Voltage: AC220V 50HZ

Flow rate: 2.8~8.1 cubic meters / hour

Power: 110~165W
